Hydrometeor partitioning ratio retrievals for Ground Radar#
In this notebook, measurements from NEXRAD’s KDDC ground radar are used to derive Hydrometeor Partitioning Ratios (HPR) following Pejcic et al. 2025 (in review). This requires the horizontal reflectivity, differential reflectivity, specific differential phase, cross correlation coefficient, temperature information and rain type. The temperature information is derived from sounding and a rain type classification is applied following Park et al. The HPRs for the different hydrometeor classes are then presented.
import datetime as dt
import urllib
import warnings
import matplotlib.pyplot as plt
import numpy as np
import wradlib as wrl
import wradlib_data
import xarray as xr
import xradar as xd
from IPython.display import display
from scipy import spatial
warnings.filterwarnings("ignore")
Read centroids, covariances and weights#
cdp_file = wradlib_data.DATASETS.fetch("misc/hmcp_centroids_dp.nc")
with xr.open_dataset(cdp_file) as cdp:
pass
cdp
Downloading file 'misc/hmcp_centroids_dp.nc' from 'https://github.com/wradlib/wradlib-data/raw/main/data/misc/hmcp_centroids_dp.nc' to '/home/docs/.cache/wradlib-data'.
<xarray.Dataset> Size: 3kB
Dimensions: (hmc: 11, obs: 5, obscov: 5)
Coordinates:
* hmc (hmc) <U2 88B 'LR' 'MR' 'HR' 'BD' 'RH' ... 'IC' 'WS' 'SN' 'DP' 'DH'
* obs (obs) <U3 60B 'ZH' 'ZDR' 'KDP' 'RHO' 'RT'
Dimensions without coordinates: obscov
Data variables:
ave (hmc, obs) float64 440B ...
cov (hmc, obs, obscov) float64 2kB ...
Attributes:
title: NEXRAD data based centroids and covariances for specific hy...
institution: Institute of Geosciences, Meteorology Section, University o...
source: Dual polarimetric quality control for NASA’s Global Precipi...
version: 1
history: NEXRAD data based centroids and covariances for specific hy...
references: .
comment: Created with wradlib.weights_file = wradlib_data.DATASETS.fetch("misc/hmcp_weights.nc")
with xr.open_dataset(weights_file) as cw:
pass
cw
<xarray.Dataset> Size: 6kB
Dimensions: (hmc: 11, temp: 58)
Coordinates:
* hmc (hmc) <U2 88B 'LR' 'MR' 'HR' 'BD' 'RH' ... 'IC' 'WS' 'SN' 'DP' 'DH'
* temp (temp) int64 464B -80 -78 -76 -74 -72 -70 -68 ... 24 26 28 30 32 34
Data variables:
weights (hmc, temp) float64 5kB ...
Attributes:
title: NEXRAD data based weights for specific hydrometeor classes ...
institution: Institute of Geosciences, Meteorology Section, University o...
source: Dual polarimetric quality control for NASA’s Global Precipi...
version: 1
history: NEXRAD data based weights for specific hydrometeor classes ...
references: .
comment: Created with wradlib.Read polarimetric radar observations#
volume = wradlib_data.DATASETS.fetch("netcdf/KDDC_2018_0625_051138_min.cf")
gr_data = xd.io.open_cfradial1_datatree(volume)
gr_data
Downloading file 'netcdf/KDDC_2018_0625_051138_min.cf' from 'https://github.com/wradlib/wradlib-data/raw/main/data/netcdf/KDDC_2018_0625_051138_min.cf' to '/home/docs/.cache/wradlib-data'.
<xarray.DataTree>
Group: /
│ Dimensions: (sweep: 14, frequency: 1)
│ Coordinates:
│ * frequency (frequency) float32 4B 2.998e+09
│ altitude float64 8B ...
│ latitude float64 8B ...
│ longitude float64 8B ...
│ Dimensions without coordinates: sweep
│ Data variables:
│ sweep_fixed_angle (sweep) float32 56B ...
│ instrument_type |S32 32B ...
│ platform_type |S32 32B ...
│ primary_axis |S32 32B ...
│ sweep_group_name (sweep) <U8 448B 'sweep_0' 'sweep_1' ... 'sweep_13'
│ time_coverage_end |S32 32B ...
│ time_coverage_start |S32 32B ...
│ volume_number int32 4B ...
│ Attributes:
│ Conventions: CF/Radial instrument_parameters radar_parameters
│ title:
│ institution: NASA GSFC
│ references: https://github.com/GPM-GV/GVradar
│ source: GVradar V1.1
│ comment:
│ instrument_name: KDDC
│ site_name: KDDC
│ platform_is_mobile: false
│ ray_times_increase: true
│ version: VN V2.1
│ history: Mon Mar 10 10:45:42 2025: ncks -x -v DZ,PH,VR,SW,SD,...
├── Group: /sweep_0
│ Dimensions: (azimuth: 720, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 3kB 0.2656 0.75 1.203 ... 359.3 359.7
│ elevation (azimuth) float32 3kB ...
│ time (azimuth) datetime64[ns] 6kB 2018-06-25T05:11:51 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 5MB ...
│ DR (azimuth, range) float32 5MB ...
│ KD (azimuth, range) float32 5MB ...
│ RH (azimuth, range) float32 5MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 3kB ...
│ prt (azimuth) float32 3kB ...
│ pulse_width (azimuth) float32 3kB ...
│ scan_rate (azimuth) float32 3kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 3kB ...
├── Group: /sweep_1
│ Dimensions: (azimuth: 720, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 3kB 0.25 0.7656 1.25 ... 359.2 359.7
│ elevation (azimuth) float32 3kB ...
│ time (azimuth) datetime64[ns] 6kB 2018-06-25T05:12:32 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 5MB ...
│ DR (azimuth, range) float32 5MB ...
│ KD (azimuth, range) float32 5MB ...
│ RH (azimuth, range) float32 5MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 3kB ...
│ prt (azimuth) float32 3kB ...
│ pulse_width (azimuth) float32 3kB ...
│ scan_rate (azimuth) float32 3kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 3kB ...
├── Group: /sweep_2
│ Dimensions: (azimuth: 720, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 3kB 0.2656 0.7344 1.219 ... 359.2 359.7
│ elevation (azimuth) float32 3kB ...
│ time (azimuth) datetime64[ns] 6kB 2018-06-25T05:13:13 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 5MB ...
│ DR (azimuth, range) float32 5MB ...
│ KD (azimuth, range) float32 5MB ...
│ RH (azimuth, range) float32 5MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 3kB ...
│ prt (azimuth) float32 3kB ...
│ pulse_width (azimuth) float32 3kB ...
│ scan_rate (azimuth) float32 3kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 3kB ...
├── Group: /sweep_3
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5938 1.578 2.578 ... 358.6 359.6
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:14:34 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_4
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5781 1.578 2.578 ... 358.6 359.6
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:14:47 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_5
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5938 1.562 2.562 ... 358.6 359.6
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:14:59 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
...
├── Group: /sweep_8
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5781 1.562 2.578 ... 358.6 359.6
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:16:33 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_9
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:16:45 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_10
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5 1.516 2.5 ... 357.5 358.5 359.5
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:16:58 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_11
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.4844 1.5 2.5 ... 358.5 359.5
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:17:10 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
├── Group: /sweep_12
│ Dimensions: (azimuth: 360, range: 1832)
│ Coordinates:
│ * azimuth (azimuth) float32 1kB 0.5156 1.484 2.5 ... 358.5 359.5
│ elevation (azimuth) float32 1kB ...
│ time (azimuth) datetime64[ns] 3kB 2018-06-25T05:17:22 ... 2...
│ * range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
│ Data variables:
│ CZ (azimuth, range) float32 3MB ...
│ DR (azimuth, range) float32 3MB ...
│ KD (azimuth, range) float32 3MB ...
│ RH (azimuth, range) float32 3MB ...
│ sweep_fixed_angle float32 4B ...
│ nyquist_velocity (azimuth) float32 1kB ...
│ prt (azimuth) float32 1kB ...
│ pulse_width (azimuth) float32 1kB ...
│ scan_rate (azimuth) float32 1kB ...
│ sweep_mode <U20 80B 'azimuth_surveillance'
│ sweep_number int32 4B ...
│ unambiguous_range (azimuth) float32 1kB ...
└── Group: /sweep_13
Dimensions: (azimuth: 360, range: 1832)
Coordinates:
* azimuth (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
elevation (azimuth) float32 1kB ...
time (azimuth) datetime64[ns] 3kB 2018-06-25T05:17:34 ... 2...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
Data variables:
CZ (azimuth, range) float32 3MB ...
DR (azimuth, range) float32 3MB ...
KD (azimuth, range) float32 3MB ...
RH (azimuth, range) float32 3MB ...
sweep_fixed_angle float32 4B ...
nyquist_velocity (azimuth) float32 1kB ...
prt (azimuth) float32 1kB ...
pulse_width (azimuth) float32 1kB ...
scan_rate (azimuth) float32 1kB ...
sweep_mode <U20 80B 'azimuth_surveillance'
sweep_number int32 4B ...
unambiguous_range (azimuth) float32 1kB ...Get Temperature Profile#
We would need the temperature of each radar bin. For that, we use Sounding Data. We also set the max_height to 30km and interpolate the vertical profile with a resolution of 1m.
rs_time = dt.datetime.fromisoformat(
str(gr_data.time_coverage_start.values.item().decode())
)
wmoid = 72451
try:
rs_ds = wrl.io.get_radiosonde(
wmoid, rs_time, cols=np.arange(13), xarray=True, max_height=30000.0, res=1.0
)
except (urllib.error.HTTPError, urllib.error.URLError):
print("service down")
dataf = wradlib_data.DATASETS.fetch("misc/radiosonde_72451_20180625_0000.h5")
rs_data, _ = wrl.io.from_hdf5(dataf)
metaf = wradlib_data.DATASETS.fetch("misc/radiosonde_72451_20180625_0000.json")
with open(metaf, "r") as infile:
import json
rs_meta = json.load(infile)
rs_ds = wrl.io.radiosonde_to_xarray(
rs_data, meta=rs_meta, max_height=30000.0, res=1.0
)
display(rs_ds)
<xarray.Dataset> Size: 3MB
Dimensions: (HGHT: 30001)
Coordinates:
* HGHT (HGHT) float64 240kB 0.0 1.0 2.0 3.0 ... 3e+04 3e+04 3e+04 3e+04
Data variables:
PRES (HGHT) float64 240kB 920.0 920.0 920.0 920.0 ... 12.45 12.45 12.44
TEMP (HGHT) float64 240kB 26.0 26.0 26.0 26.0 ... -41.63 -41.63 -41.63
DWPT (HGHT) float64 240kB 16.0 16.0 16.0 16.0 ... -78.16 -78.16 -78.16
FRPT (HGHT) float64 240kB 16.0 16.0 16.0 16.0 ... -73.92 -73.92 -73.91
RELH (HGHT) float64 240kB 54.0 54.0 54.0 54.0 54.0 ... 1.0 1.0 1.0 1.0
RELI (HGHT) float64 240kB 54.0 54.0 54.0 54.0 54.0 ... 1.0 1.0 1.0 1.0
MIXR (HGHT) float64 240kB 12.58 12.58 12.58 12.58 ... 0.07 0.07 0.07
DRCT (HGHT) float64 240kB 100.0 100.0 100.0 100.0 ... 64.02 63.85 63.69
SKNT (HGHT) float64 240kB 4.0 4.0 4.0 4.0 ... 18.42 18.42 18.42 18.43
THTA (HGHT) float64 240kB 306.4 306.4 306.4 306.4 ... 810.4 810.4 810.5
THTE (HGHT) float64 240kB 344.5 344.5 344.5 344.5 ... 811.3 811.3 811.3
THTV (HGHT) float64 240kB 308.7 308.7 308.7 308.7 ... 810.4 810.4 810.5
Attributes: (12/32)
Station identifier: DDC
Station number: 72451
Observation time: 2018-06-25 00:00:00
Station latitude: 37.76
Station longitude: -99.97
Station elevation: 790.0
... ...
Equivalent potential temp [K] of the LCL: 340.04
Mean mixed layer potential temperature: 305.79
Mean mixed layer mixing ratio: 11.36
1000 hPa to 500 hPa thickness: 5789.0
Precipitable water [mm] for entire sounding: 26.16

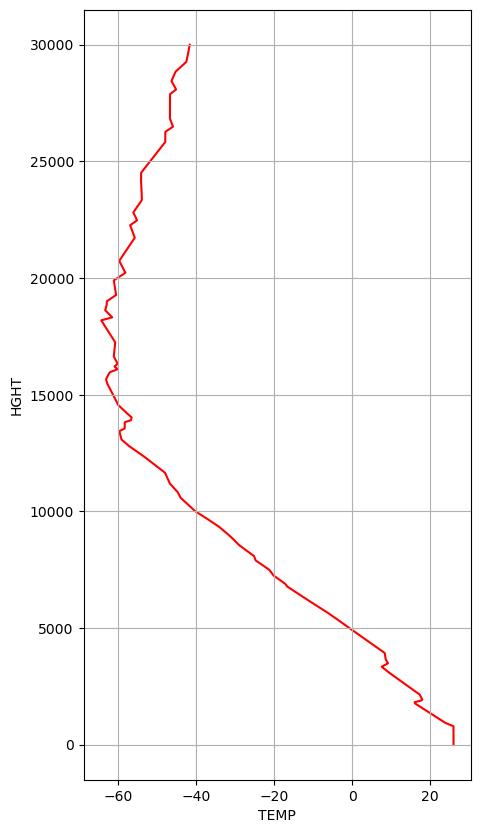

quantity: {'PRES': 'hPa', 'HGHT': 'm'...Plot Temperature Profile#
fig = plt.figure(figsize=(5, 10))
ax = fig.add_subplot(111)
rs_ds.TEMP.plot(y="HGHT", ax=ax, zorder=0, c="r")
ax.grid(True)
get freezing level height#
We need to obtain the freezing level height, which is needed for an ad-hoc retrieval of raintype.
fl = np.abs(rs_ds).argmin("HGHT").TEMP
display(fl)
<xarray.DataArray 'TEMP' ()> Size: 8B array(4914)
georeference DataTree#
For the interpolation of the temperature sounding data onto the radar sweeps, we need the xyz coordinates of the sweeps.
gr_data2 = gr_data.xradar.georeference()
gr_data2["sweep_0"]
<xarray.DataTree 'sweep_0'>
Group: /sweep_0
Dimensions: (sweep: 14, frequency: 1, azimuth: 720, range: 1832)
Coordinates:
* azimuth (azimuth) float32 3kB 0.2656 0.75 1.203 ... 359.3 359.7
elevation (azimuth) float32 3kB 0.4844 0.4844 ... 0.4844 0.4844
time (azimuth) datetime64[ns] 6kB 2018-06-25T05:11:51 ... 2...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
x (azimuth, range) float64 11MB 9.85 11.01 ... -2.129e+03
y (azimuth, range) float64 11MB 2.125e+03 ... 4.592e+05
z (azimuth, range) float64 11MB 807.2 809.4 ... 1.711e+04
altitude float64 8B 789.0
latitude float64 8B 37.76
longitude float64 8B -99.97
crs_wkt int64 8B 0
Inherited coordinates:
* frequency (frequency) float32 4B 2.998e+09
Dimensions without coordinates: sweep
Data variables:
CZ (azimuth, range) float32 5MB ...
DR (azimuth, range) float32 5MB ...
KD (azimuth, range) float32 5MB ...
RH (azimuth, range) float32 5MB ...
sweep_fixed_angle float32 4B ...
nyquist_velocity (azimuth) float32 3kB ...
prt (azimuth) float32 3kB ...
pulse_width (azimuth) float32 3kB ...
scan_rate (azimuth) float32 3kB ...
sweep_mode <U20 80B 'azimuth_surveillance'
sweep_number int32 4B ...
unambiguous_range (azimuth) float32 3kB ...Interpolate Temperature onto sweeps#
The following function interpolates the vertical temperature profile onto the radar sweeps.
def merge_radar_profile(rds, cds):
if "z" in rds.coords:
cds = cds.interp({"HGHT": rds.z}, method="linear")
rds = rds.assign({"TEMP": cds})
return rds
gr_data3 = gr_data2.map_over_datasets(merge_radar_profile, rs_ds.TEMP)

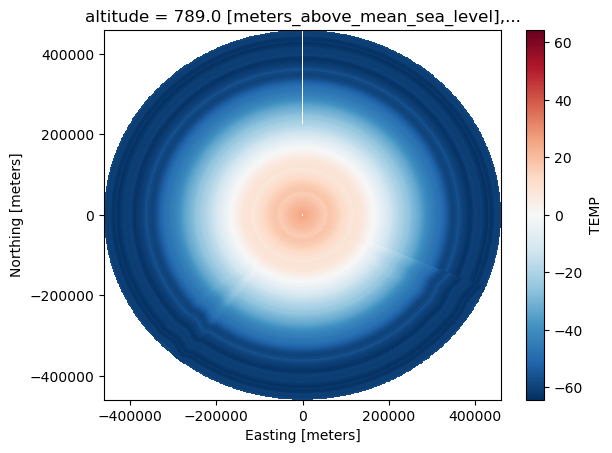

gr_data3["sweep_1"].TEMP.plot(x="x", y="y")
<matplotlib.collections.QuadMesh at 0x7c65ae743b60>
Ad-hoc retrieval of raintype#
The following algorithm of raintype estimation is derived after (Park et al.).
keep all radar bins >= 45 dBZ
keep all radar bins > 30 dBZ and height > fl + 1600m
combine 1 and 2
iterate over x,y pairs and fetch from whole tree to set as convective.
def mask_data(rds, fl):
if "z" in rds.coords:
# Thresholding and smoothing (Park et al.)
# -----------------------------------------
xwin_zh = 5
rds = rds.where(rds.RH > 0.8)
rds["CZ"] = rds.CZ.rolling(
range=xwin_zh, min_periods=xwin_zh // 2, center=True
).mean(skipna=True)
mask = (rds.CZ >= 45) | ((rds.CZ > 30) & (rds.z > (fl + 1600)))
rds = rds.assign(mask=mask)
return rds
gr_data4 = gr_data3.map_over_datasets(mask_data, fl)
Extract xyz bin coordinates#
This iterates over the whole DataTree and extracts the RainType-mask as 1-dimensional array. This keeps only valid values.
def get_xyz(tree):
swp_list = []
for key in list(tree.children):
if "sweep" in key:
ds = tree[key].ds.stack(npoints=("azimuth", "range"))
ds = ds.reset_coords().where(ds.mask, drop=True)
swp_list.append(ds.mask)
return xr.concat(swp_list, "npoints")
Interpolation of RainType mask#
This interpolates the RainType for all sweeps, to get a vertically consistent RainType. For this a KDTree is created containing the valid values from above, which is used for the Nearest interpolator. The ROI (maxdist) is assumed to be the current range resolution, but can be specified as keyword argument.
%%time
kwargs = dict(balanced_tree=True)
xyz = get_xyz(gr_data4)
src = np.vstack([xyz.x.values, xyz.y.values]).T
kdtree = spatial.KDTree(src, **kwargs)
def get_range_res(rng):
return rng.range.diff("range").median("range").values
def ipol_mask(swp, xyz, kdtree, maxdist=None):
if "z" in swp.coords:
if maxdist is None:
maxdist = swp.range.attrs.get(
"meters_between_gates", get_range_res(swp.range)
)
trg = np.vstack([swp.x.values.ravel(), swp.y.values.ravel()]).T
nn = wrl.ipol.Nearest(kdtree, trg)
out = nn(xyz.values, maxdist=maxdist).reshape(swp.x.shape)
swp = swp.assign(rt=(swp.x.dims, out))
swp["rt"] = xr.where(swp["rt"] == 1, 2, 1)
return swp
gr_data5 = gr_data4.map_over_datasets(ipol_mask, xyz, kdtree)
CPU times: user 11.7 s, sys: 511 ms, total: 12.2 s
Wall time: 7.67 s

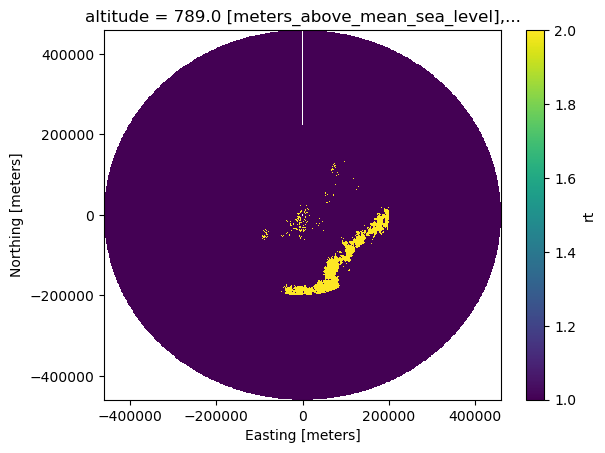

gr_data5["sweep_0"].rt.plot(x="x", y="y")
<matplotlib.collections.QuadMesh at 0x7c659825c550>
ZDR Offset retrieval#
The ZDR offset was retrieved following A. Ryzhkov & D. Zrnic 2019, 6.2.3 Z-ZDR Consistency in Light Rain, pp. 153-156.
zdr_offset = 0.5
Extract sweep 2 for further processing#
swp = gr_data5["sweep_2"].ds
swp
<xarray.DatasetView> Size: 139MB
Dimensions: (azimuth: 720, range: 1832, frequency: 1)
Coordinates: (12/13)
* azimuth (azimuth) float32 3kB 0.2656 0.7344 1.219 ... 359.2 359.7
elevation (azimuth) float32 3kB 1.312 1.312 1.312 ... 1.312 1.312
time (azimuth) datetime64[ns] 6kB 2018-06-25T05:13:13 ... 2...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
x (azimuth, range) float64 11MB 9.848 11.01 ... -2.377e+03
y (azimuth, range) float64 11MB 2.124e+03 ... 4.587e+05
... ...
HGHT (azimuth, range) float64 11MB 837.9 843.7 ... 2.374e+04
* frequency (frequency) float32 4B 2.998e+09
altitude float64 8B 789.0
latitude float64 8B 37.76
longitude float64 8B -99.97
crs_wkt int64 8B 0
Data variables: (12/15)
CZ (azimuth, range) float32 5MB nan nan nan ... nan nan nan
DR (azimuth, range) float32 5MB nan nan nan ... nan nan nan
KD (azimuth, range) float32 5MB nan nan nan ... nan nan nan
RH (azimuth, range) float32 5MB nan nan nan ... nan nan nan
sweep_fixed_angle (azimuth, range) float32 5MB nan nan nan ... nan nan nan
nyquist_velocity (azimuth, range) float32 5MB nan nan nan ... nan nan nan
... ...
sweep_mode (azimuth, range) object 11MB nan nan nan ... nan nan nan
sweep_number (azimuth, range) float64 11MB nan nan nan ... nan nan nan
unambiguous_range (azimuth, range) float32 5MB nan nan nan ... nan nan nan
TEMP (azimuth, range) float64 11MB nan nan nan ... nan nan nan
mask (azimuth, range) bool 1MB False False ... False False

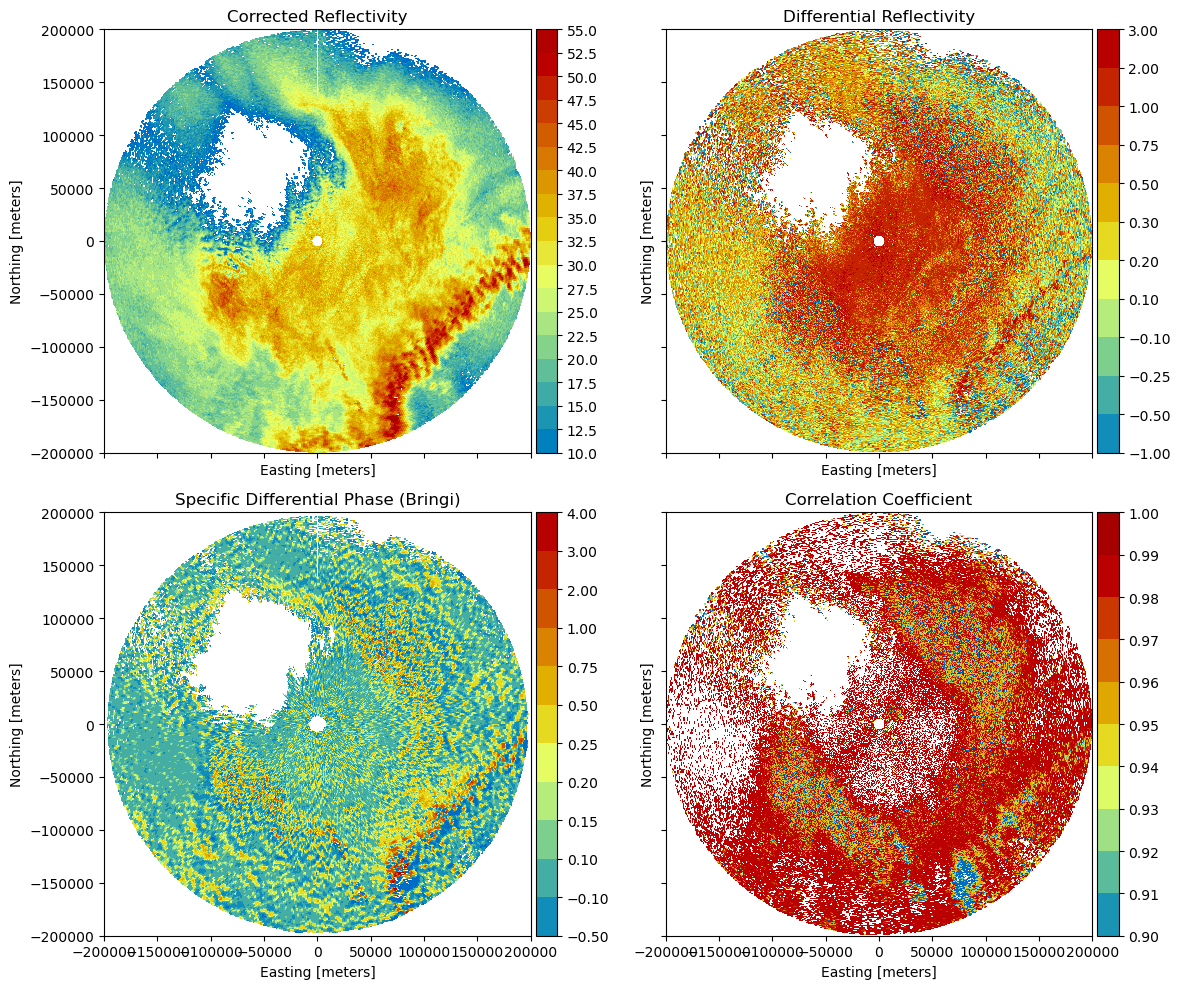

rt (azimuth, range) int64 11MB 1 1 1 1 1 1 1 ... 1 1 1 1 1 1fig, axs = plt.subplots(2, 2, figsize=(12, 10), sharex=True, sharey=True)
swpp = swp[["CZ", "DR", "KD", "RH"]]
display(swpp)
LVL = [
np.arange(10, 57.5, 2.5),
np.array([-1, -0.5, -0.25, -0.1, 0.1, 0.2, 0.3, 0.5, 0.75, 1, 2, 3]),
np.array(
[-0.5, -0.1, 0.1, 0.15, 0.2, 0.25, 0.5, 0.75, 1, 2, 3, 4]
), # np.arange(-0.5,2, 0.2),
np.arange(0.9, 1.01, 0.01),
]
for i, var in enumerate(swpp.data_vars.values()):
cbar_kwargs = {
"extend": "neither",
"label": "",
"pad": 0.01,
"ticks": LVL[i],
}
ax = axs.flat[i]
var.dropna("range", how="all").plot(
x="x",
y="y",
ax=ax,
cmap="HomeyerRainbow",
levels=LVL[i],
cbar_kwargs=cbar_kwargs,
)
ax.set_title(var.attrs["long_name"])
plt.tight_layout()
<xarray.Dataset> Size: 63MB
Dimensions: (azimuth: 720, range: 1832)
Coordinates:
* azimuth (azimuth) float32 3kB 0.2656 0.7344 1.219 ... 358.7 359.2 359.7
elevation (azimuth) float32 3kB 1.312 1.312 1.312 ... 1.312 1.312 1.312
time (azimuth) datetime64[ns] 6kB 2018-06-25T05:13:13 ... 2018-06-2...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.596e+05 4.599e+05
x (azimuth, range) float64 11MB 9.848 11.01 ... -2.377e+03
y (azimuth, range) float64 11MB 2.124e+03 2.374e+03 ... 4.587e+05
z (azimuth, range) float64 11MB 837.9 843.7 ... 2.372e+04 2.374e+04
HGHT (azimuth, range) float64 11MB 837.9 843.7 ... 2.372e+04 2.374e+04
altitude float64 8B 789.0
latitude float64 8B 37.76
longitude float64 8B -99.97
crs_wkt int64 8B 0
Data variables:
CZ (azimuth, range) float32 5MB nan nan nan nan ... nan nan nan nan
DR (azimuth, range) float32 5MB nan nan nan nan ... nan nan nan nan
KD (azimuth, range) float32 5MB nan nan nan nan ... nan nan nan nan
RH (azimuth, range) float32 5MB nan nan nan nan ... nan nan nan nan
Combine observations into xr.DataArray#
Use the mapping to bind the existing variable names to the needed names.
# mapping observations
obs_mapping = {
"ZH": "CZ",
"ZDR": "DR",
"KDP": "KD",
"RHO": "RH",
"RT": "rt",
"TEMP": "TEMP",
}
polars = wrl.classify.create_gr_observations(swp, obs_mapping)
polars
<xarray.DataArray 'data' (obs: 6, azimuth: 720, range: 1832)> Size: 63MB
array([[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
...
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]],
[[ 1., 1., 1., ..., 1., 1., 1.],
[ 1., 1., 1., ..., 1., 1., 1.],
[ 1., 1., 1., ..., 1., 1., 1.],
...,
[ 1., 1., 1., ..., 1., 1., 1.],
[ 1., 1., 1., ..., 1., 1., 1.],
[ 1., 1., 1., ..., 1., 1., 1.]],
[[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
...,
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan],
[nan, nan, nan, ..., nan, nan, nan]]], shape=(6, 720, 1832))
Coordinates: (12/13)
* obs (obs) <U4 96B 'ZH' 'ZDR' 'KDP' 'RHO' 'RT' 'TEMP'
* azimuth (azimuth) float32 3kB 0.2656 0.7344 1.219 ... 358.7 359.2 359.7
elevation (azimuth) float32 3kB 1.312 1.312 1.312 ... 1.312 1.312 1.312
time (azimuth) datetime64[ns] 6kB 2018-06-25T05:13:13 ... 2018-06-2...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.596e+05 4.599e+05
x (azimuth, range) float64 11MB 9.848 11.01 ... -2.377e+03
... ...
z (azimuth, range) float64 11MB 837.9 843.7 ... 2.372e+04 2.374e+04
HGHT (azimuth, range) float64 11MB 837.9 843.7 ... 2.372e+04 2.374e+04
altitude float64 8B 789.0
latitude float64 8B 37.76
longitude float64 8B -99.97
crs_wkt int64 8B 0Calculate hydrometeor partitioning ratios (HPR)#
This uses the loaded weights and centroids to retrieve the hydrometeor partitioning ratio from the observations.
hmpr = wrl.classify.calculate_hmpr(polars, cw.weights, cdp)

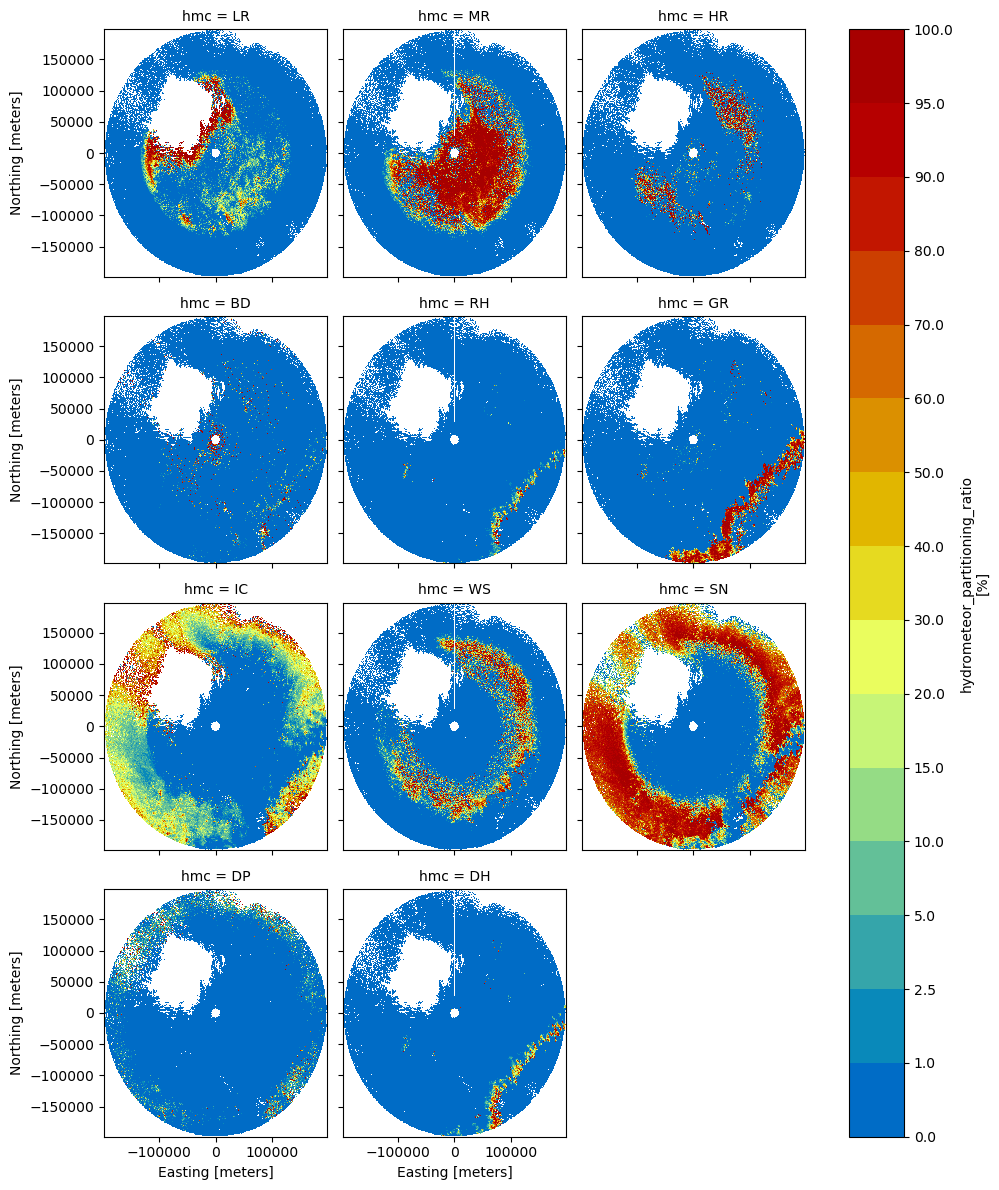

Plotting all Hydrometeor-Classes#
For better plotting we transfrom to 100% and drop NaN data.
hmpr = hmpr.dropna("range", how="all") * 100
hpr_bins = [0, 1, 2.5, 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 95, 100]
hmpr.plot(
col="hmc",
col_wrap=3,
x="x",
y="y",
cmap="HomeyerRainbow",
levels=hpr_bins,
cbar_kwargs={"ticks": hpr_bins},
)
<xarray.plot.facetgrid.FacetGrid at 0x7c65ee810ec0>
